3.5 inch 320*240 Resistive Touch Screen - HX8238D

Product Description

ZW-T035MLH-01P is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC, a back light unit and RTP.The 3.5 inch display area contains 320 x(RGB)x240 pixels and can display up to 16.7M colors.This product accords with RoHS environmental criterion.

Customized
Accepted
Sample Stock
Small amount stock
MOQ
1000pcs
Lead Time
5-7 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ

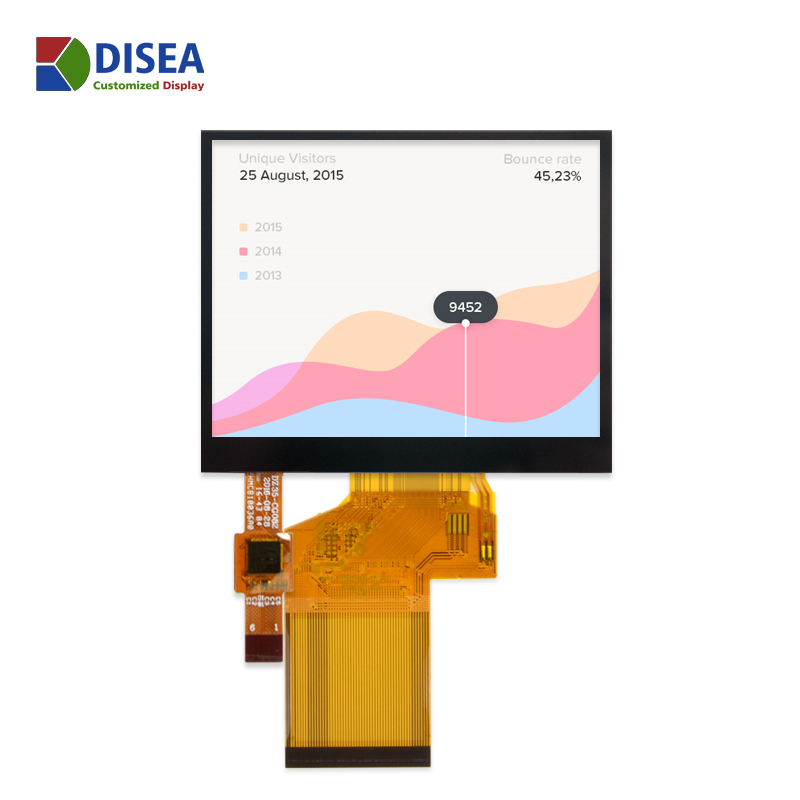

Display Module 3.5 inch photo1
Display Module 3.5 inch photo1 Display Module 3.5 inch photo 2 Display Module 3.5 inch photo 3 Display Module 3.5 inch photo 4

Product Details

Feature Specification Unit
Brand Disea -
Size 3.5 inch
Resolution 320*240 dots
Pixel pitch 0.292(H)*0.218(V) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 250 cd/m2
LCM (W * H * D) 76.80×63.80×3.40 mm
Active Area (W * H ) 70.08×52.56 mm
With /Without TP With RTP -
LED Numbers 6S-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface 24BIT RGB 54PIN -
LCM Power Supply 2.8 V
LED  Power Supply 18 V
Color Depth 262K -
LCM Driver IC HX8238D -
CTP Dricer IC - -
