3.5 inch QVGA 320*240 HX8238D TFT LCD Module

Product Description

ZW-T035GLH-01 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC,a back light unit. The 3.5 inch display area contains 320X(RGB)X240 pixels and can display up to 262K colors.This product accords with RoHS environmental criterion.

Customized
Accepted
Sample Stock
Small amount stock
MOQ
3000pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ

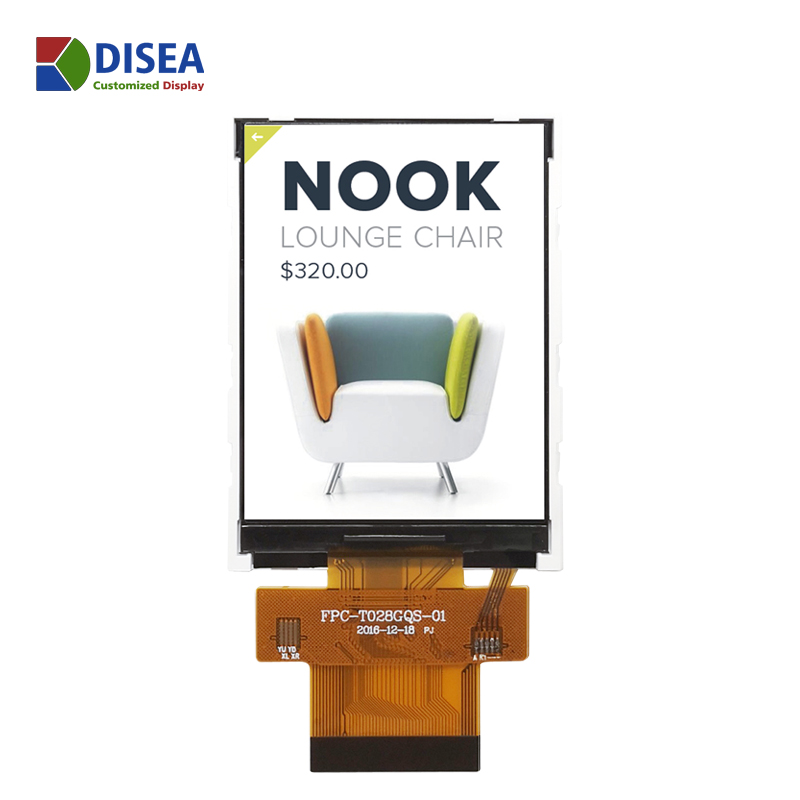

HX8238D TFT LCD Display photo1
HX8238D TFT LCD Display photo1 HX8238D TFT LCD Display photo 2 HX8238D TFT LCD Display photo 3 HX8238D TFT LCD Display photo 4

Product Details

Item

Contents

Unit

Note

LCD Type

TFT

-



Display color

262K



1

Viewing Direction

6

O’Clock



Gray scale inversion direction

12

O’Clock



Operating temperature

-20~+70



Storage temperature

-30~+80



Module size

572.9×63.9×3.05

mm

2

Active Area(W×H)

70.1×52.6

mm



Number of Dots

320×240

dots



Controller

HX8238D

-



Power Supply Voltage

2.8

V



Backlight

6S-LEDs (white)

pcs



Weight

-

g



Interface

RGB888

-
