3.5 inch 320*240 Full viewing Angle TFT LCD Module

Product Description

ZW-T035HLS-06 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC,a back light unit.The 3.5¢¢ display area contains 320X(RGB)X240 pixels and can display up to 16.7M colors.This product accords with RoHS environmental criterion.

Customized
Accepted
Sample Stock
Small amount stock
MOQ
1000pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ

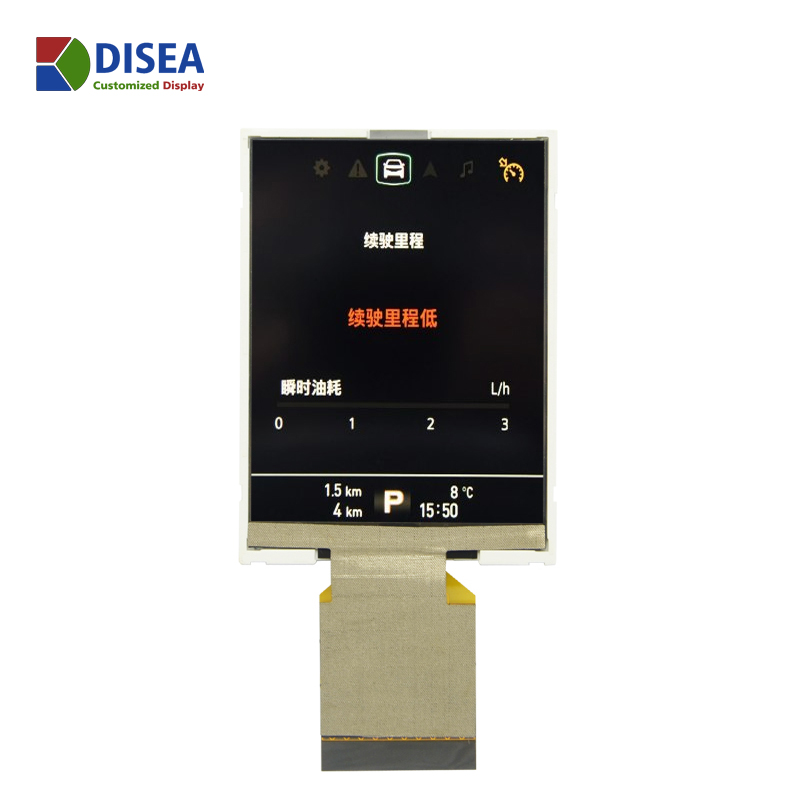

3.5 inch ips lcd photo 1
3.5 inch ips lcd photo 1 3.5 inch ips lcd photo 2 3.5 inch ips lcd photo 3 3.5 inch ips lcd photo 4

Product Details

Feature Specification Unit
Brand Disea -
Size 3.5 inch
Resolution 320*240 dots
Pixel pitch 0.219(H)*0.219(V) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 300 cd/m2
LCM (W * H * D) 76.80*63.90*3.05 mm
Active Area (W * H ) 70.08*52.56 mm
With /Without TP Without TP -
LED Numbers 6S-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface RGB-24bit/54PIN -
LCM Power Supply 3.3 V
LED  Power Supply 18.0  V
Color Depth 16.7M -
LCM Driver IC ST7272A -
CTP Dricer IC - -
