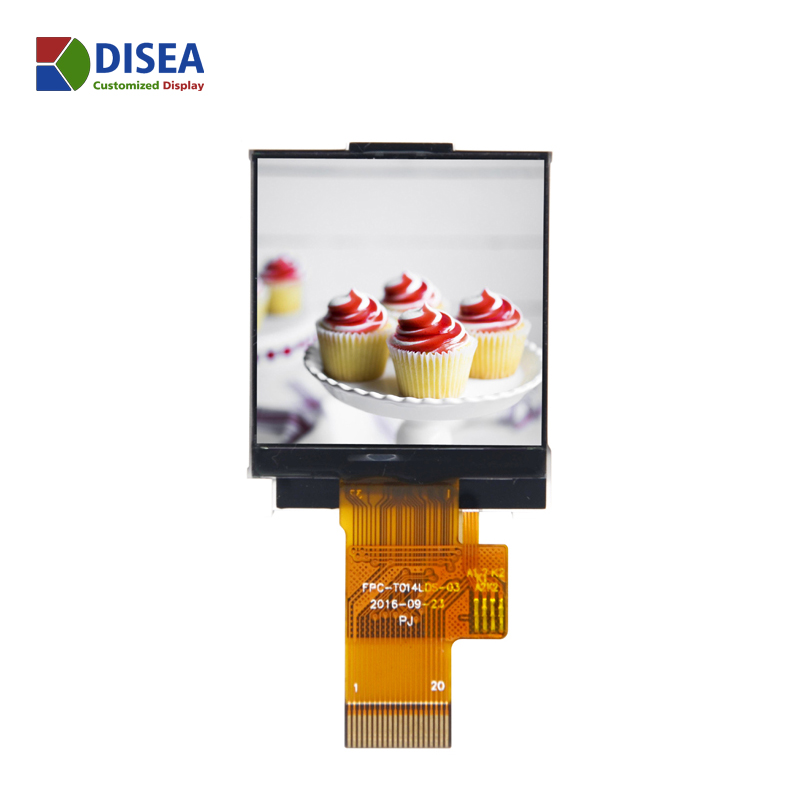

ZW-T014LDS-01

1.41 inch 128*128 TFT LCD Module In Stock

ZW-T014LDS-01 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC, a back light unit.The 1.41’’ display area contains 128 X(RGB)X 128 pixels and can display up to 262K colors.This product accords with RoHS environmental criterion.


1.44 inch tft lcd outline drawing-DISEA

Feature Specification Unit
Brand Disea -
Size 1.41 inch
Resolution 128*128 dots
Pixel pitch 0.19725(H)*0.19725(V) mm
Display Mode TN/NW -
Viewing Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Luminance 150 cd/m2
LCM (W * H * D) 30.90*36.50*2.50 mm
Active Area (W * H ) 25.25*25.25 mm
With /Without TP Without TP -
LED Numbers 2-LED pcs
Operation temperature -30~+80
Storage temperature -35~+85
Interface MCU-8bit/20PIN -
LCM Power Supply 2.8 V
LED  Power Supply 3.0  V
Color Depth 262K -
LCM Driver IC ST7735 -
CTP Dricer IC - -

Stock And Customization

Please consult us for product stock availability. In most cases, customers need to customize their own products. Our experienced project managers can help you evaluate your project, recommend the most suitable product, or make the most logical customization suggestions. The evaluation is free and we will be happy to help you, even if you don't end up choosing us.
