ZW-T020TQI-02P

2.0 inch 240×320 TFT LCD Module with Resistive Touch Panel

Production State
In Production
Stock Quantity
10 PCS

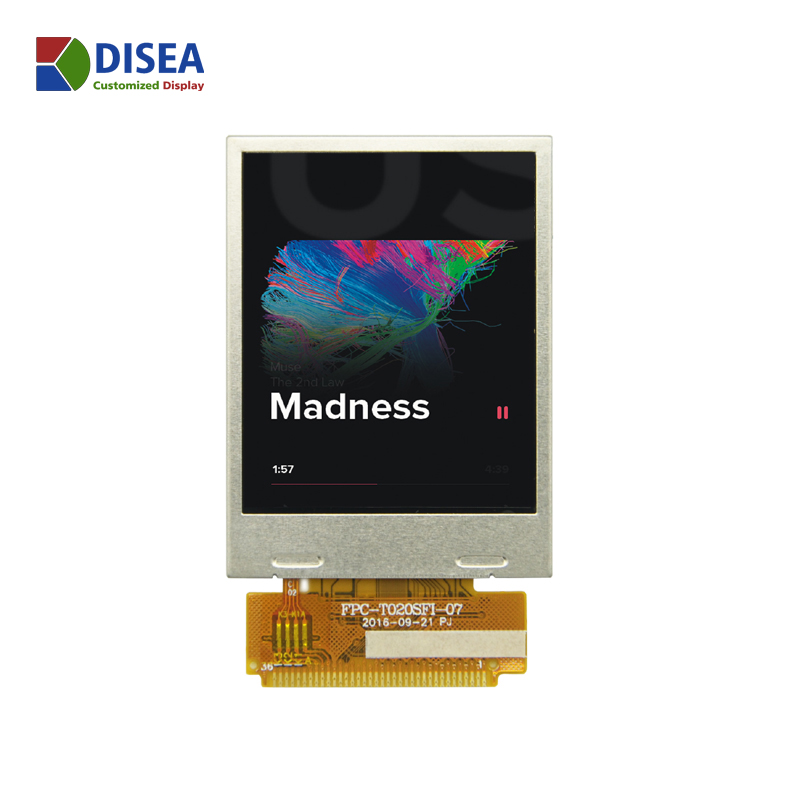

ZW-T020TQI-02P is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC,FPC,a back light unit and RTP.The 2.0 display area contains 240X(RGB)X320 pixels and can display up to 262K colors.This product accords with RoHS environmental criterion.

ZW-T020TQI-02P outline drawing

Brand Disea
Size 2 inch
Resolution 240*320 dots
Pixel pitch 0.126(H)*0.126(V)mm
Display Mode TN/NW
Viewing Direction 9 o'clock
Gray Scale Inversion Direction 3 o'clock
Luminance 130 cd/m2
LCM (W * H * D) 36.80*48.20*3.75 mm
Active Area (W * H ) 30.24*40.32 mm
With /Without TP Yes
LED Numbers 2P-LED pcs
Operation temperature -20~+70℃
Storage temperature -30~+80℃
Interface MCU-8/16bit/36PIN
LCM Power Supply 2.8 V
LED  Power Supply 3 V
Color Depth 262K
LCM Driver IC ILI9335



Stock and Customization

Please contact us for product availability. In most cases customers need to customise their own TFT LCD screen. Our experienced project managers can help you evaluate your project, recommend the most suitable product or make the most logical customisation suggestions. The evaluation is free of charge and we're happy to help even if you don't decide to go with us.
