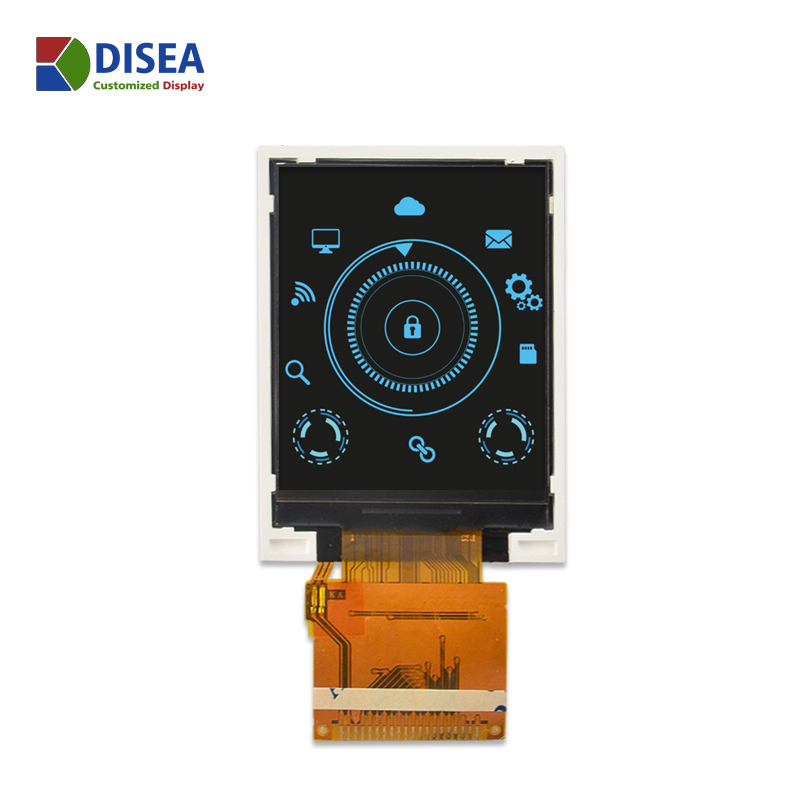

ZW-T022TQI-04 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC,FPC,a back light unit.The 2.2 display area contains 240X(RGB)X320 pixels and can display up to 262K colors.This product accords with RoHS environmental criterion.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Disea | - |
| Size | 2.2 | inch |
| Resolution | 240*320 | dots |
| Pixel pitch | 0.180(H)*0.180(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 6 | o'clock |
| Gray Scale Inversion Direction | 12 | o'clock |
| Luminance | 350 | cd/m2 |
| LCM (W * H * D) | 40.1*57.1*3.0 | mm |
| Active Area (W * H ) | 33.84*45.12 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 4-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | MCU/40PIN | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 3 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ILI9341V | - |
| CTP Dricer IC | - | - |
