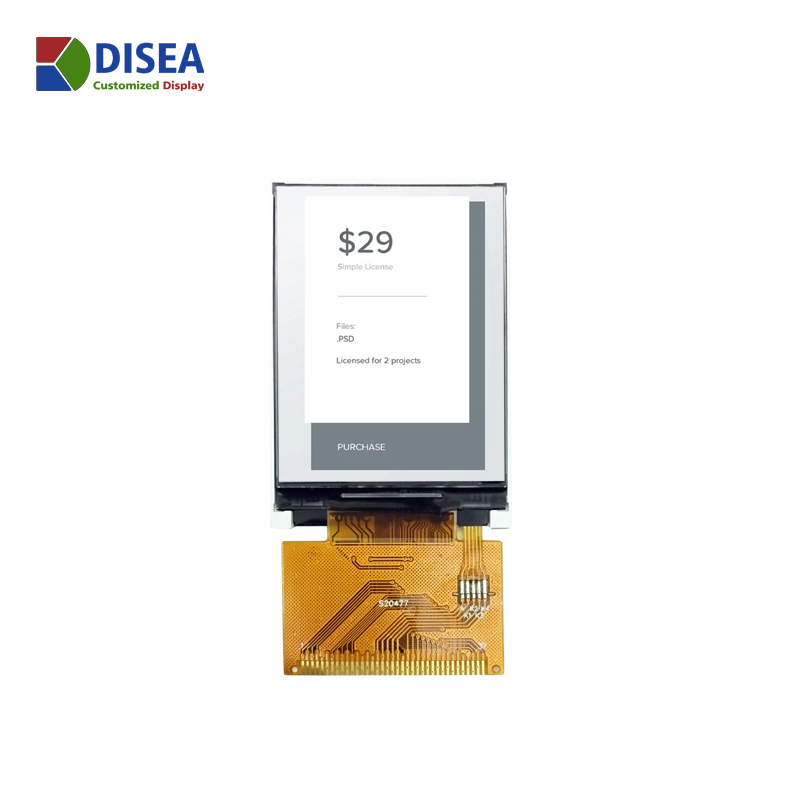

ZW-T023TLI-03 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC,a back light unit.The 2.3 display area contains 320X(RGB)X240 pixels and can display up to 262K colors.This product accords with RoHS environmental criterion.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Disea | - |
| Size | 2.3 | inch |
| Resolution | 320*240 | dots |
| Pixel pitch | 0.146(H)*0.146(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 6 | o'clock |
| Gray Scale Inversion Direction | 12 | o'clock |
| Luminance | 290 | cd/m2 |
| LCM (W * H * D) | 50.60*44.30*2.30 | mm |
| Active Area (W * H ) | 46.75*35.06 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 4P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | 8BIT MCU | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 3.0 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ILI9342 | - |
| CTP Dricer IC | - | - |
