2.4 inch 240*320 Custom Capacitive Touch Screen

Product Description

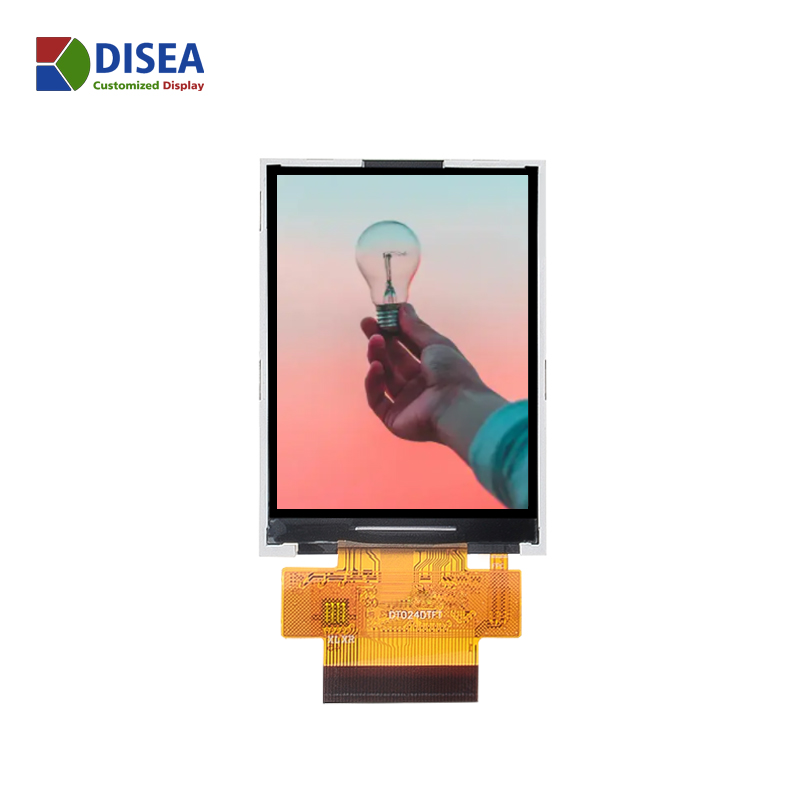

ZW-T024HQI-13CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light and CTP unit . The 2.4 display area contains 240X(RGB)X320 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.

Customized
Accepted
Sample Stock
Small amount stock
MOQ
1000pcs
Lead Time
6-8 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
DISEA  4.3 inch capacitive touch panel 1
DISEA  4.3 inch capacitive touch panel 1 DISEA  4.3 inch capacitive touch panel photo 1.4

Product Details

Feature Specification
Brand Disea
Size 2.4 inch
Resolution 240*320
Pixel pitch 0.153(H)*0.153(V) mm
Display Mode IPS
Viewing Direction All
Gray Scale Inversion Direction ALL
Luminance 450 cd/m2
LCM (W * H * D) 54.00*72.00*4.60 mm
Active Area (W * H ) 36.72*48.96 mm
With /Without TP Without TP
LED Numbers 2S3P-LED pcs
Operation temperature -20~+70 ℃
Storage temperature -30~+80 ℃
Interface MCU/RGB/SPI
LCM Power Supply 2.8 V
LED  Power Supply 6.0 V
Color Depth 262K
LCM Driver IC ILI9341V
CTP Dricer IC FT5346
