2.4 inch 240*320 TFT LCD Module With 4-wire SPI Interface

Product Description

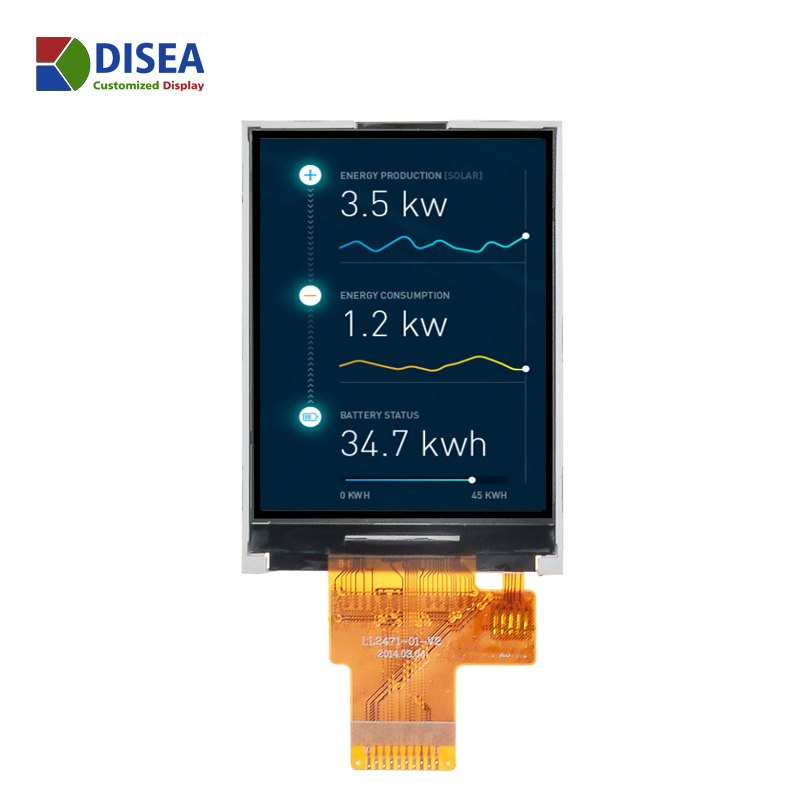

ZW-T024SQS-09 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC, a back light unit.The 2.4 display area contains 240 X(RGB)X 320pixels and can display up to 262K colors.This product accords with RoHS environmental criterion.

Sample Stock
Small amount stock
Lead Time
4-6 weeks
Bank transfer/Alibaba/Paypal
Shipping Port
ZW-T024SQS-09 1.0
ZW-T024SQS-09 1.0 ZW-T024SQS-09 2.0 ZW-T024SQS-09 3.0 ZW-T024SQS-09 4.0 ZW-T024SQS-09 5.0

Product Details

Feature Specification Unit
Brand Disea -
Size 2.4 inch
Resolution 240*320 dots
Pixel pitch 0.153(H)*0.153(V) mm
Display Mode TN/NW -
Viewing Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Luminance 250 cd/m2
LCM (W * H * D) 42.72*60.26*2.20 mm
Active Area (W * H ) 36.72*48.96 mm
With /Without TP Without TP -
LED Numbers 4P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface 4-wire-SPI -
LCM Power Supply 2.8  V
LED  Power Supply 3.0  V
Color Depth 262K -
LCM Driver IC ST7789V -
CTP Dricer IC - -
