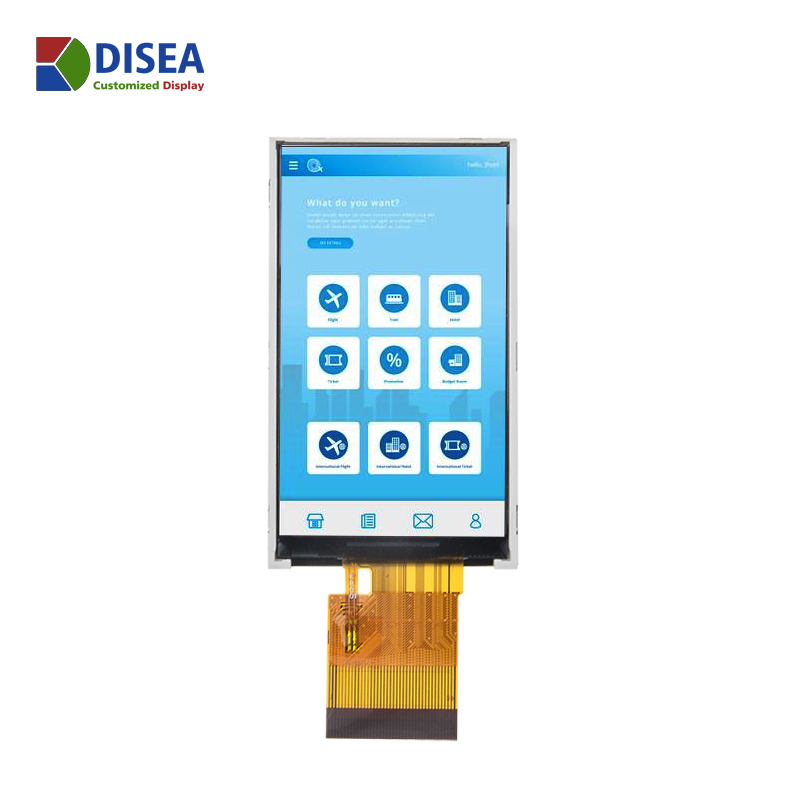

2.8 inch 240*320 High Brightness TFT LCD Module

Product Description

ZW-T028BQI-16 is a TFT-LCD module. It is composed of a TFT-LCD panel,driver IC,FPC,a back light unit.The 2.8 display area contains 240 X(RGB)X 320 pixels and can display up to 262K colors.This product accords with RoHS environmental criterion.

Sample Stock
Small amount stock
Lead Time
4-6 weeks
Bank transfer/Alibaba/Paypal
Shipping Port
ZW-T028BQI-16 1.0
ZW-T028BQI-16 1.0 ZW-T028BQI-16 2.0 ZW-T028BQI-16 3.0 ZW-T028BQI-16 4.0 ZW-T028BQI-16 5.0

Product Details

Feature Specification Unit
Brand Disea -
Size 2.8 inch
Resolution 240*320 dots
Pixel pitch 0.18(H)*0.18(V) mm
Display Mode IPS -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 500 cd/m2
LCM (W * H * D) 50.00*69.20*2.35 mm
Active Area (W * H ) 43.20*57.60 mm
With /Without TP Without TP -
LED Numbers 4P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface MCU/RGB/SPI -
LCM Power Supply 2.8 V
LED  Power Supply 3.0  V
Color Depth 262K -
LCM Driver IC ILI9341V -
CTP Dricer IC - -
