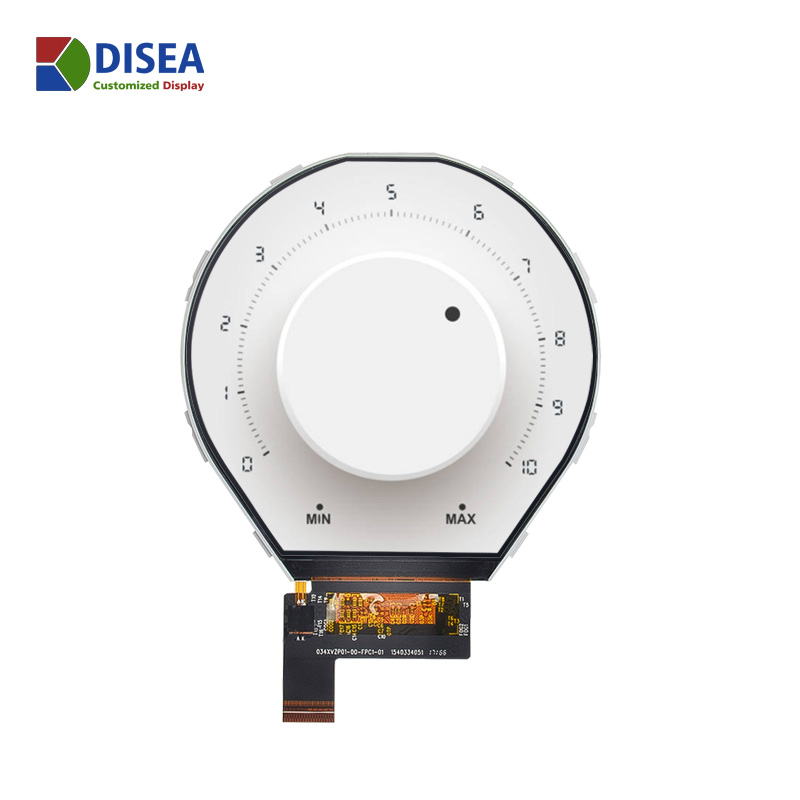

3.4 inch 800*800 Round lcd touch screen

Product Description

ZW-T034TQH-01CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light and CTP unit. The 3.4 display area contains 800X(RGB)x800 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

Sample Stock
Small amount stock
Lead Time
6-8 weeks
Bank transfer/Alibaba/Paypal
Shipping Port
3.4 inch round shape lcd display 2
3.4 inch round shape lcd display 2 3.4 inch round shape lcd display 1 3.4 inch round shape lcd display 3 3.4 inch round shape lcd display 4

Product Details

Feature Specification Unit
Brand Disea -
Size 3.4 inch
Resolution 800*800 dots
Pixel pitch 0.1095(H)* 0.1095(V) mm
Display Mode IPS -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 350 cd/m2
LCM (W * H * D) 96.60*99.00*3.98 mm
Active Area (W * H ) 87.60*87.60 mm
With /Without TP With CTP -
LED Numbers 4S2P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface MIPI -
LCM Power Supply 3.3 V
LED  Power Supply 12.0  V
Color Depth 16.7M -
LCM Driver IC ILI9881C -
CTP Dricer IC HX8526 -
