ZW-T056TN53-01

5.6 inch 640*480 High Brightness LCD Module

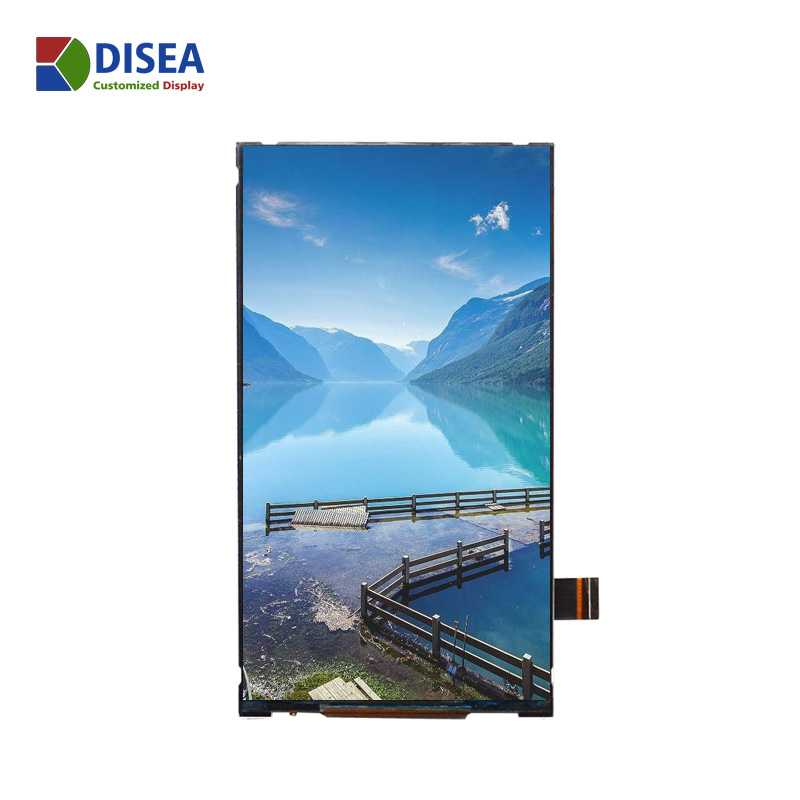

ZW-T056TN53-01 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC, a back light unit.The 5.6 display area contains 640 x(RGB)x480 pixels and can display up to 262K colors.This product accords with RoHS environmental criterion.

ZW-T056TN53-01 outline drawing

Feature Specification Unit
Brand Disea -
Size 5.6 inch
Resolution 640*480 dots
Pixel pitch 0.1764(H)×0.1764(V) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 800 cd/m2
LCM (W * H * D) 126.50*100.00*5.70 mm
Active Area (W * H ) 112.896*84.672 mm
With /Without TP Without TP -
LED Numbers 3S7P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface RGB-18bit/40PIN -
LCM Power Supply 3.3 V
LED  Power Supply 9.0  V
Color Depth 262K -
LCM Driver IC - -
CTP Dricer IC - -
