DISEA 7.0 Inch 800x480 High Brightness Capacitive Touch Screen

Product Description

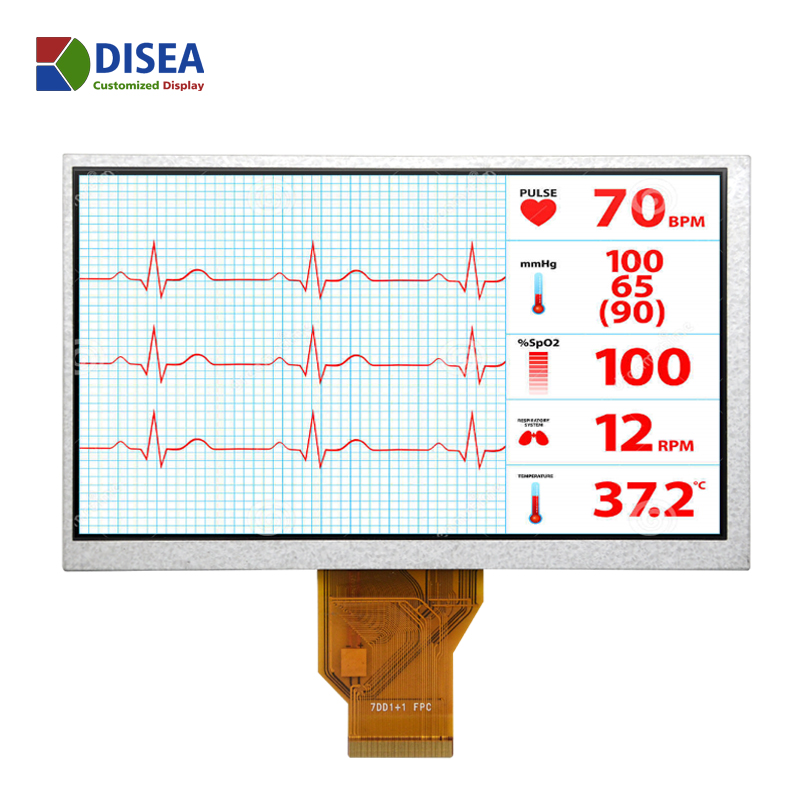

ZW-T070SWH-99CP is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC,a back light unit.The 7.0 display area contains 800x(RGB)x480 pixels and can display up to 16.7M colors.This product accords with RoHS environmental criterion.

Customized
Accepted
Sample Stock
Small amount stock
MOQ
1000pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
ZW-T070SWH-99CP
ZW-T070SWH-99CP ZW-T070SWH-99CP ZW-T070SWH-99CP ZW-T070SWH-99CP ZW-T070SWH-99CP

Product Details

Feature Specification Unit
Brand Disea -
Size 7.0  inch
Resolution 800*480 dots
Pixel pitch 0.1926(W)x 0.1790(H) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 700 cd/m2
LCM (W * H * D) 165.00*100.00*7.40 mm
Active Area (W * H ) 154.08*85.92 mm
With /Without TP Without TP -
LED Numbers 3S10P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface RGB888/50PIN -
LCM Power Supply 3.3 V
LED  Power Supply 9.0  V
Color Depth 16.7M -
LCM Driver IC HX8264E+HX8664B -
CTP Dricer IC FT5426 -
