ZW-T090BAE-03

9 inch 1024x600 LVDS Interface TFT LCD Module

Production State
In Production
Stock Quantity
10 PCS

ZW-T090BAE-03 is a TFT-LCD module. It is composed of a TFT-LCD panel,driver IC,FPC,a back light unit.The 9.0 display area contains 1024x(RGB)x600 pixels and can display up to 16.2M colors.This product accords with RoHS environmental criterion.

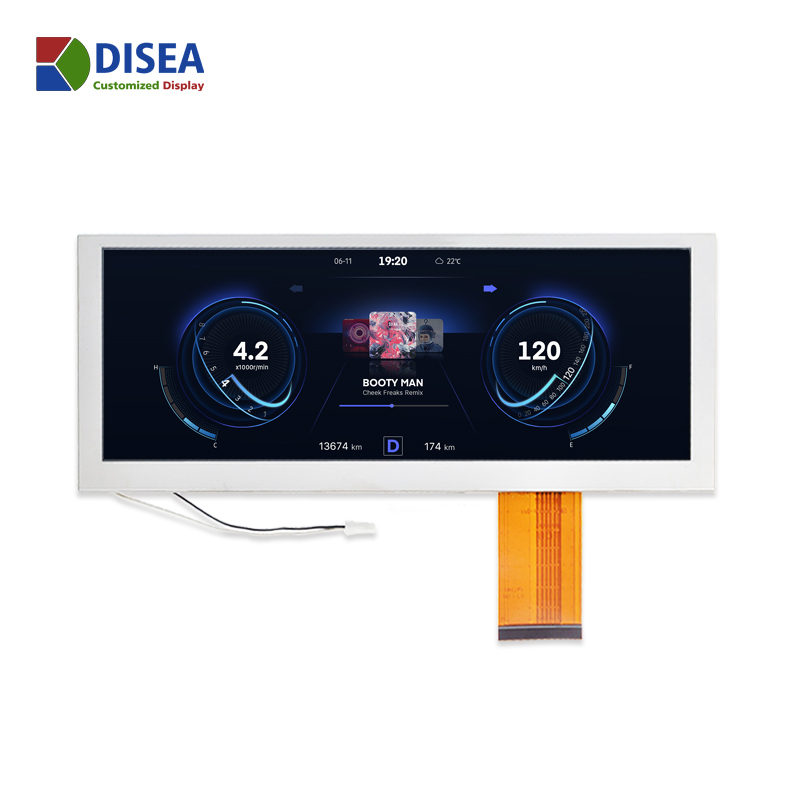

ZW-T090BWH-01 outline drawing

Feature Specification Unit
Brand Disea -
Size 9.0  inch
Resolution 800*480 dots
Pixel pitch 0.192(W)x 0.190(H) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 300 cd/m2
LCM (W * H * D) 211.10*126.50*3.4 mm
Active Area (W * H ) 196.61*114.15 mm
With /Without TP Without TP -
LED Numbers 4S7P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface LVDS -
LCM Power Supply 3.3 V
LED  Power Supply 9.0  V
Color Depth 16.2M -
LCM Driver IC HX8282A+HX8696 -
CTP Dricer IC - -
