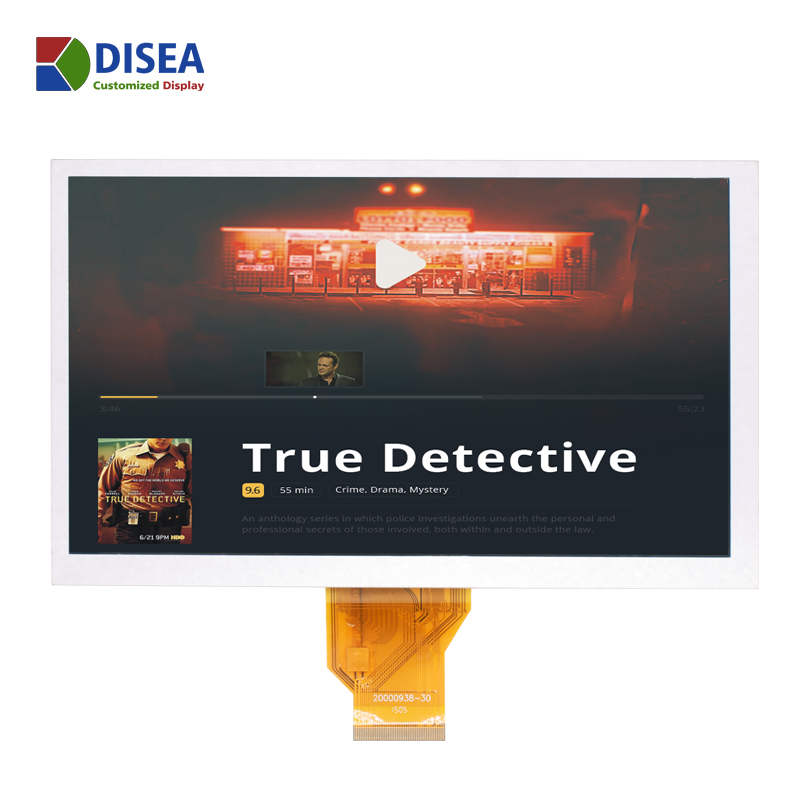

9.0 inch 800*480 High Brightness TFT LCD Module

Product Description

ZW-T090BWH-01 is a TFT-LCD module.It is composed of a TFT-LCD panel, driver IC,FPC, a back light unit.The 7.0 display area contains 800 x(RGB)x480 pixels and can display up to 16.7M colors.This product accords with RoHS environmental criterion.

Sample Stock
Small amount stock
Lead Time
4-6 weeks
Bank transfer/Alibaba/Paypal
Shipping Port
DISEA 9 inch display panel1.01
DISEA 9 inch display panel1.01 DISEA 9 inch display panel1.02 DISEA 9 inch display panel1.03 DISEA 9 inch display panel 1.04

Product Details

Feature Specification Unit
Brand Disea -
Size 9.0  inch
Resolution 800*480 dots
Pixel pitch 0.2475(W)x 0.2327(H) mm
Display Mode TN/NW -
Viewing Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Luminance 950 cd/m2
LCM (W * H * D) 210.70*126.50*5.30 mm
Active Area (W * H ) 198.00*111.70 mm
With /Without TP Without TP -
LED Numbers 4S9P-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface 24BIT RGB -
LCM Power Supply 3.3  V
LED  Power Supply 12.0  V
Color Depth 16.7M -
LCM Driver IC HX8264+HX8664 -
CTP Dricer IC - -
