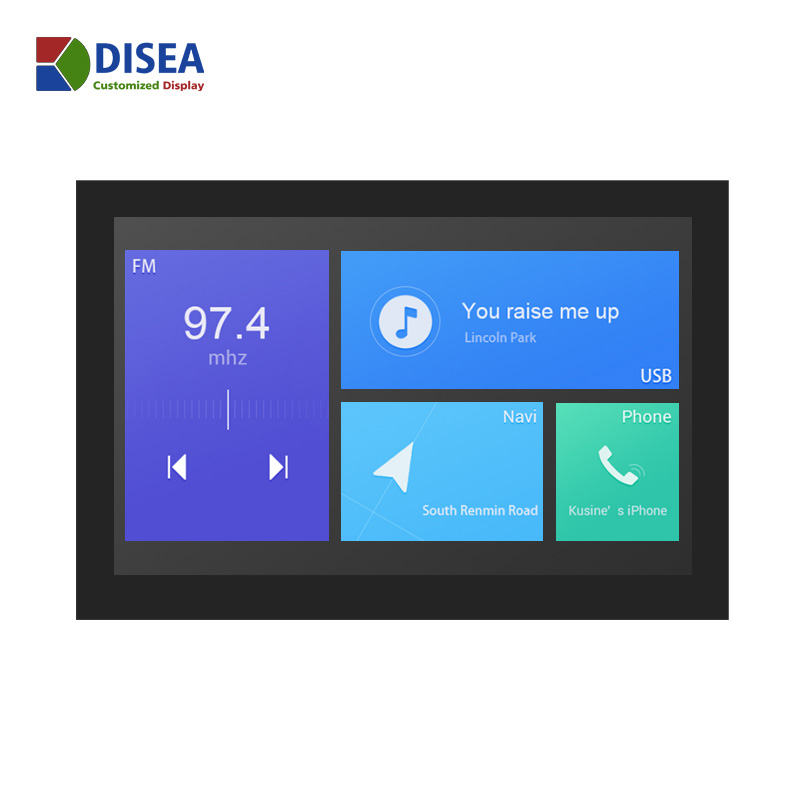

ZW-T121HXXA-03 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC,a back light unit.The 12.1 display area contains 1024X(RGB)X768 pixels and can display up to 16.7M colors.This product accords with RoHS environmental criterion.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Disea | - |
| Size | 12.1 | inch |
| Resolution | 1024 x 768 | dots |
| Pixel pitch | 0.24(H)×0.24(V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 500 | cd/m2 |
| LCM (W * H * D) | 260.50*204.00*8.30 | mm |
| Active Area (W * H ) | 245.76*184.32 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 11S4P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | LVDS | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 36.3 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | NA | - |
| CTP Dricer IC | - | - |
