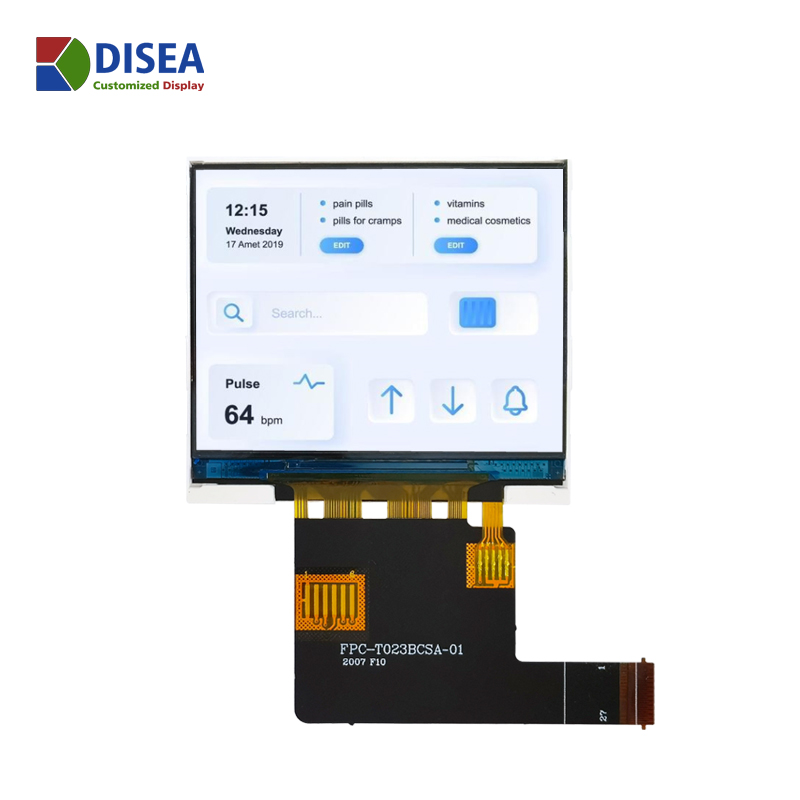

2.3 inch 480*360 IPS TFT LCD Module With ST7701S IC
ZW-T023BCSA-01
Product Description
ZW-T334TOS-01 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC,a back light unit.The 3.34 display area contains 320X(RGB)X320 pixels and can display up to 16.7M colors.This product accords with RoHS environmental criterion.
Feature | Specification |
---|---|
Brand | Disea |
Size | 3.34 inch |
Resolution | 320*320 |
Pixel pitch | 0.185(H)*0.185(V) mm |
Display Mode | TN/NW |
Viewing Direction | 12 o'clock |
Gray Scale Inversion Direction | 6 o'clock |
Luminance | 650 cd/m2 |
LCM (W * H * D) | 66.20*69.30*2.66 |
Active Area (W * H ) | 60.00*60.00 |
With /Without TP | With TP |
LED Numbers | 6S-LED pcs |
Operation temperature | -20~+70 ℃ |
Storage temperature | -30~+80 ℃ |
Interface | MIPI/17PIN |
LCM Power Supply | 2.8 V |
LED Power Supply | 18.0 V |
Color Depth | 262K |
LCM Driver IC | ST7796SI |
