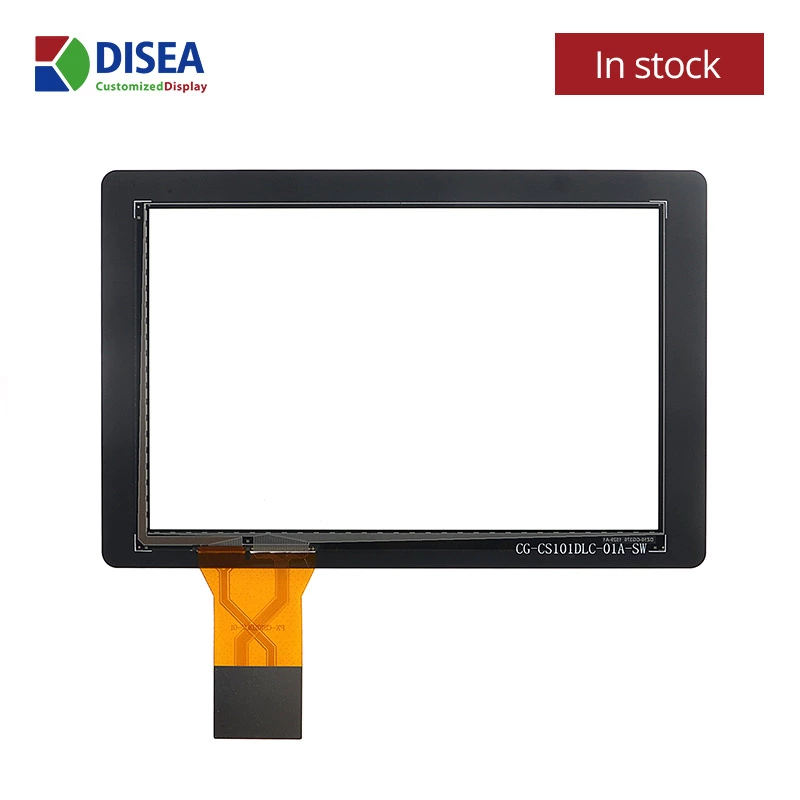

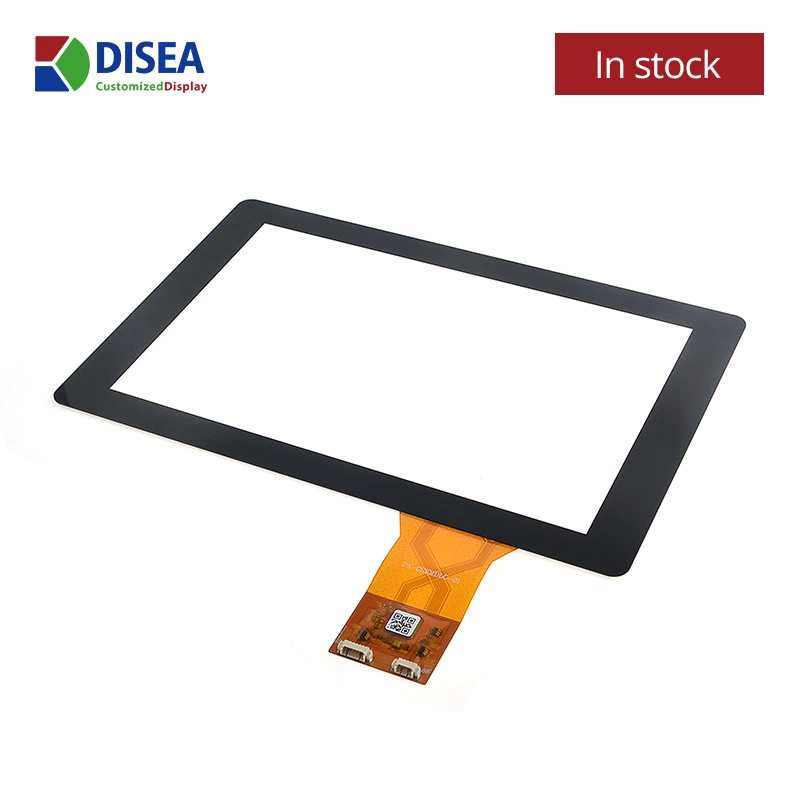

The DS-CS101DLC-01A is a 10.1-inch capacitive touch screen (PCAP) with a resolution of 1024×600 pixels. It supports 10-point touch control for smooth and precise user interaction, integrates the ST1633i chip, and utilizes an IIC interface.
| ltem | Contents | Unit |
|---|---|---|
| Product size (inch) | 10.1 | Inch |
| Resolution | 1024×600 | |

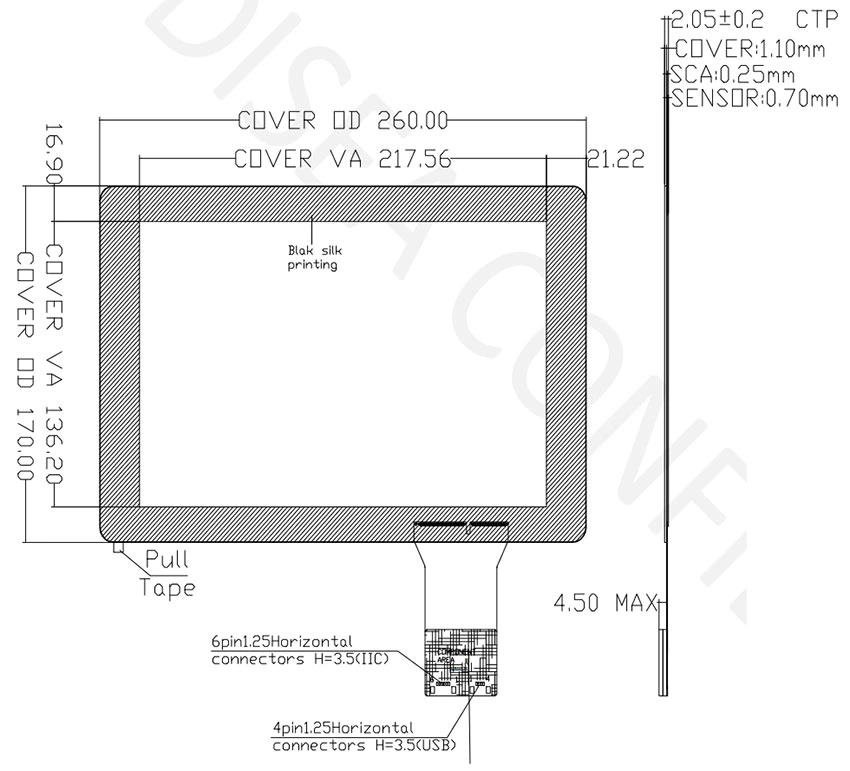

| Outline Dimension(L*W*H) | 260×170×2.05 | mm |
| Cover lens Dimension(L*W*H) | 260×170×1.1 | mm |
| Sensor Dimension(L*W*H) | 227.16×148.5×0.7 | mm |
| Active Area(L*W) | 218.56×148.5 | mm |
| View Area(L*W) | 217.56×136.2 | mm |
| Interface Type | IIC/USB | IIC/USB |
| The origin of coordinates | Top left | Top left/Top right/Lower left/Bottom right |
| IIC Address IIC | 0×41 | |
| Software version number | V01 | |
| Chip Type | ILI2511 | |
| Touch Panel Structure | G+G | |
| Surface Hardness | ≥6H(500gf) | |
| Surface Treatment | N.A. | |
| Operation Temperature | -20-70 | ℃ |
| Storage Temperature | -30-80 | ℃ |
| Number of simultaneous touches | 10 points touch |
Please contact us for product availability. In most cases customers need to customise their own TFT LCD screen. Our experienced project managers can help you evaluate your project, recommend the most suitable product or make the most logical customisation suggestions. The evaluation is free of charge and we're happy to help even if you don't decide to go with us.
