1.77 inch 128x160 TFT LCD Module
ZW-T177SSS-04
Specializing in TFT LCD and Capacitive Touch Screens.

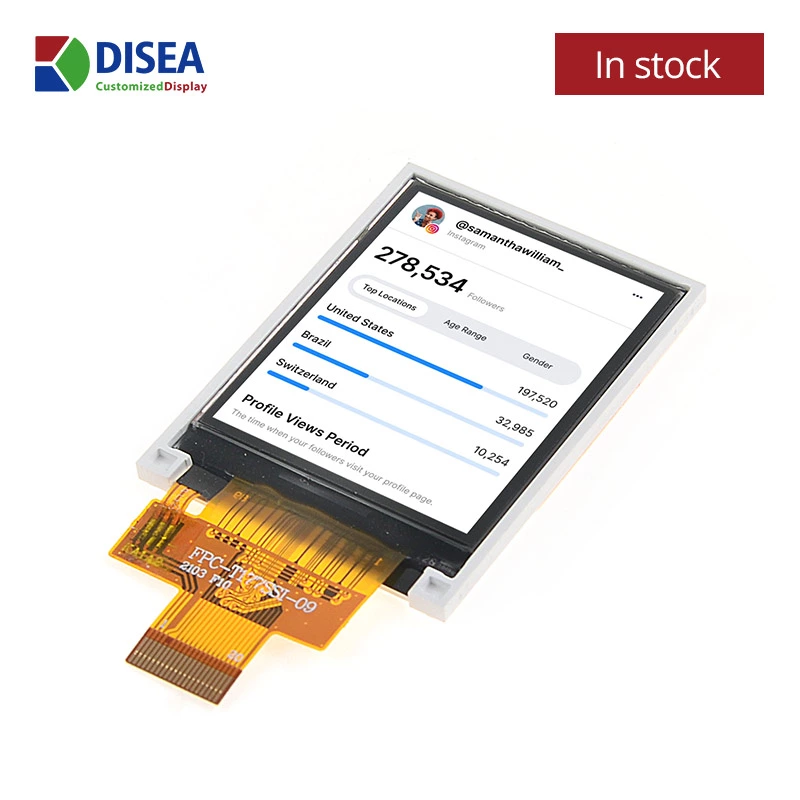

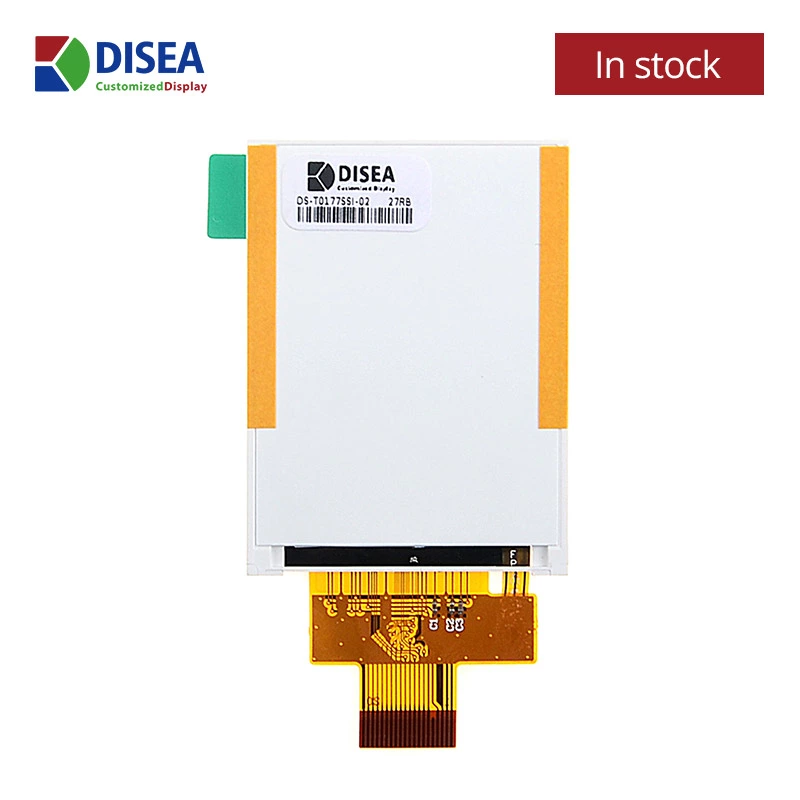

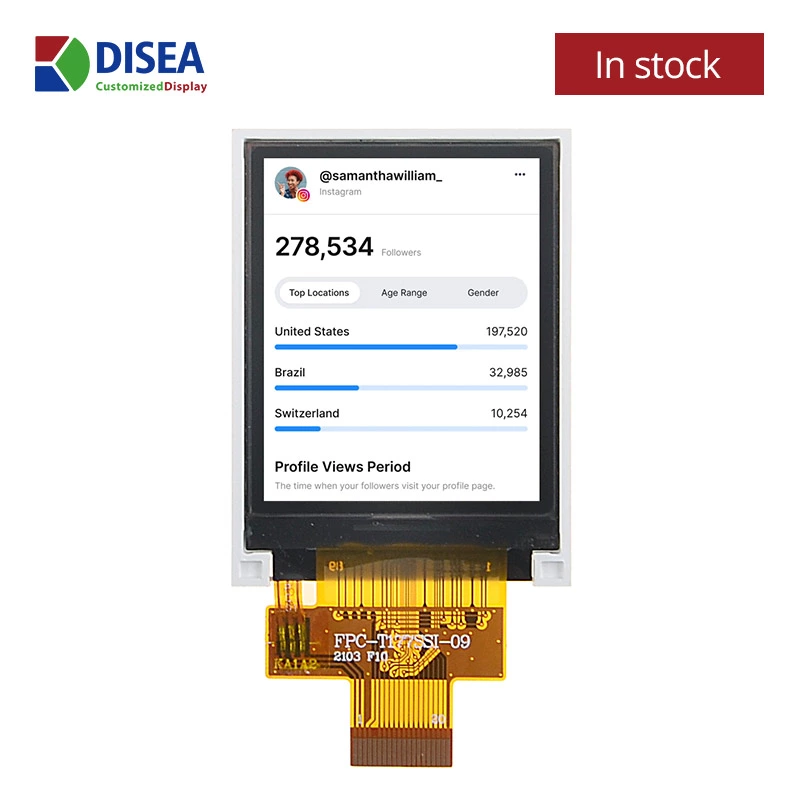

DS-T0177SSI-02 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC,a back light. The 1.77 display area contains 128X(RGB)X160 pixels and can display up to 16.7M colors.This product accords with RoHS environmental criterion.
| Item | Contents | Unit |
|---|---|---|
| LCD Type | TFT | - |
| Display color | 262K | |
| Viewing Direction | 12 | O'Clock |
| Operating temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Active Area(W×H) | 28.03×35.04 | mm |
| Number of Dots | 128×160 | dots |
| Controller | ILI9163V | - |
| Power Supply Voltage | 2.8 | V |

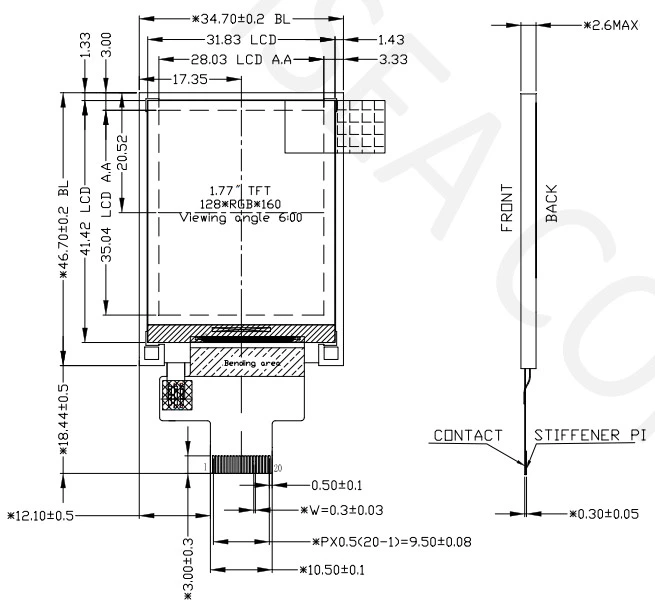

| Outline Dimensions | 34.70×46.70×2.60 | mm |
| Backlight | 2×1-LEDs(white) | pcs |
| Interface | 8BIT MCU | - |
| Lcm luminance | 220 | cd/m² |
