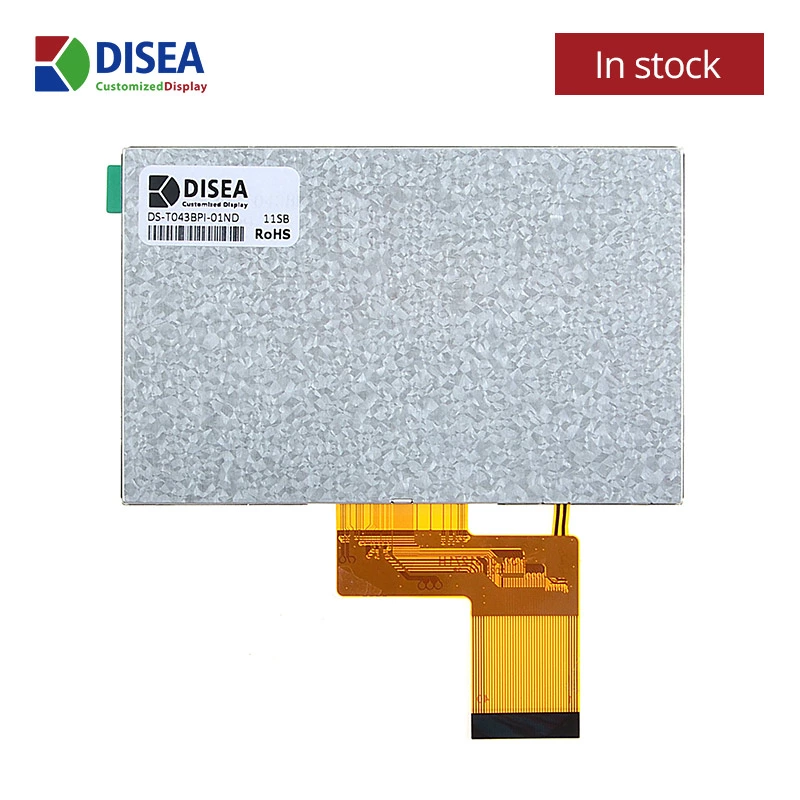

DS-T043BPI-01ND is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit . The 4.3 display area contains 480 x (RGB) x 272 pixels and can display up to 16.7M colors. This product accords with ROHS environmental Criterion.
| Item | Contents | Unit |
|---|---|---|
| LCD Type | TFT | |
| Display color | 16.7M | |
| Viewing Direction | 12 | O'Clock |
| Grayscale inversion direction | 6 | O'Clock |
| Operating temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Module size | 105.50×67.15×3.05 | mm |
| Active Area(W×H) | 95.04×53.86 | mm |
| Number of Dots | 480×272 | dots |
| Driver IC | ILI6485(Series) | |
| Backlight | 7S1P-LEDs(white) | pcs |
| Power Supply Voltage | 3.3 | V |
| Interface | RGB | |
| Lcm luminance | 300 | cd/m² |
Please contact us for product availability. In most cases customers need to customise their own TFT LCD screen. Our experienced project managers can help you evaluate your project, recommend the most suitable product or make the most logical customisation suggestions. The evaluation is free of charge and we're happy to help even if you don't decide to go with us.
