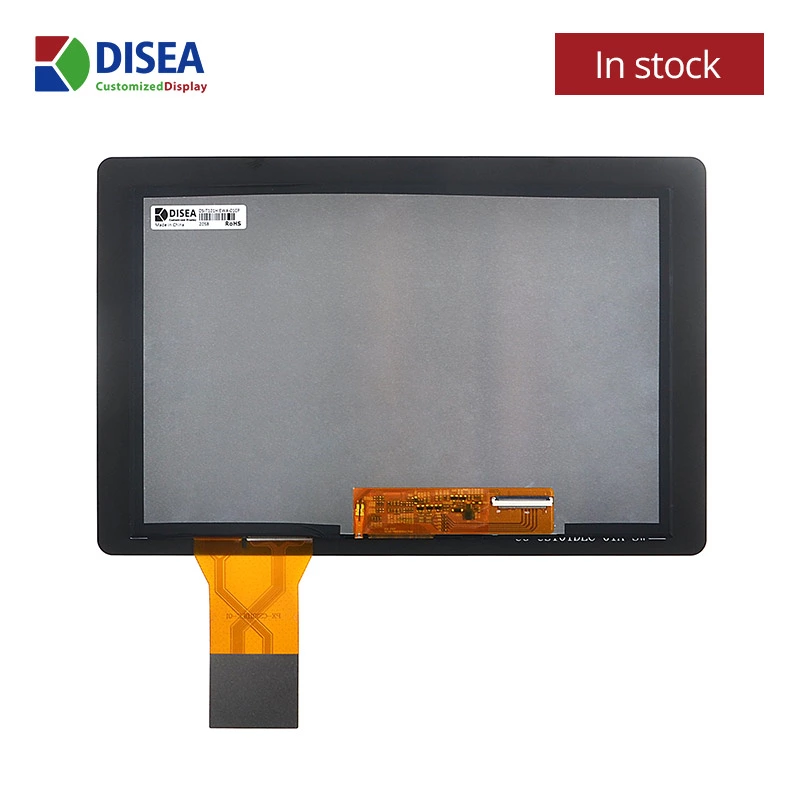

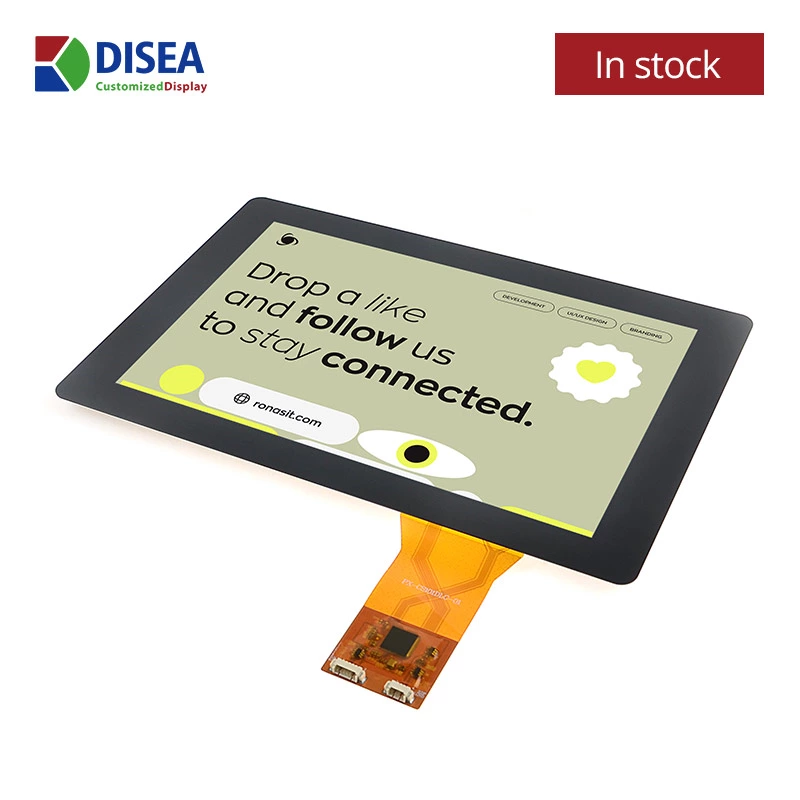

DS-T101HIEWA-01CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 10.1” display area contains 1280x800 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.
| Item | Contents | Unit |
|---|---|---|
| LCD Type | TFT | |
| Display color | 16.7M | |
| Viewing Direction | ALL | O'Clock |
| Operating temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Module size | 10.1 | inch |
| Active Area(W×H) | 216.96(H)×135.60(V) | mm |
| Number of Dots | 1280×800 | dots |
| Controller | EK79202 | |
| Power Supply Voltage | 3.3 | V |
| Outline Dimensions | 260.00×170.00×6.95(10.25Max) | mm |
| Backlight | 7×6-LEDs(white) | pcs |
| Lcm luminance | 850 | cd/m² |
| Interface | 6/8 BIT LVDS |
| Item | Contents | Unit |
|---|---|---|
| Outline Size | 260.00×170.00 | mm |
| Cover View Area | 154.81(H)×86.52V) | mm |
| CTP Resolution | 1280×800 | dots |
| Interface Mode | IIC/USB | |
| Touch Mode | 5 Human fingers multi-touch | |
| Surface hardness | >=6H | |
| Transparency | >=85% | |
| Accuracy | Entre +/-1.5mm,Edge +/-2.5mm | mm |
| CTP Controller | ILI2511 | |
| Power Supply Voltage | 3.3 | V |
Please contact us for product availability. In most cases customers need to customise their own TFT LCD screen. Our experienced project managers can help you evaluate your project, recommend the most suitable product or make the most logical customisation suggestions. The evaluation is free of charge and we're happy to help even if you don't decide to go with us.
70+ engineers work for DISEA, most of them are from industry leaders of TFT LCD module, such as Tianma, BOE-Varitronix, etc. Each of our Core Team Members has 15 years of industry experience.
