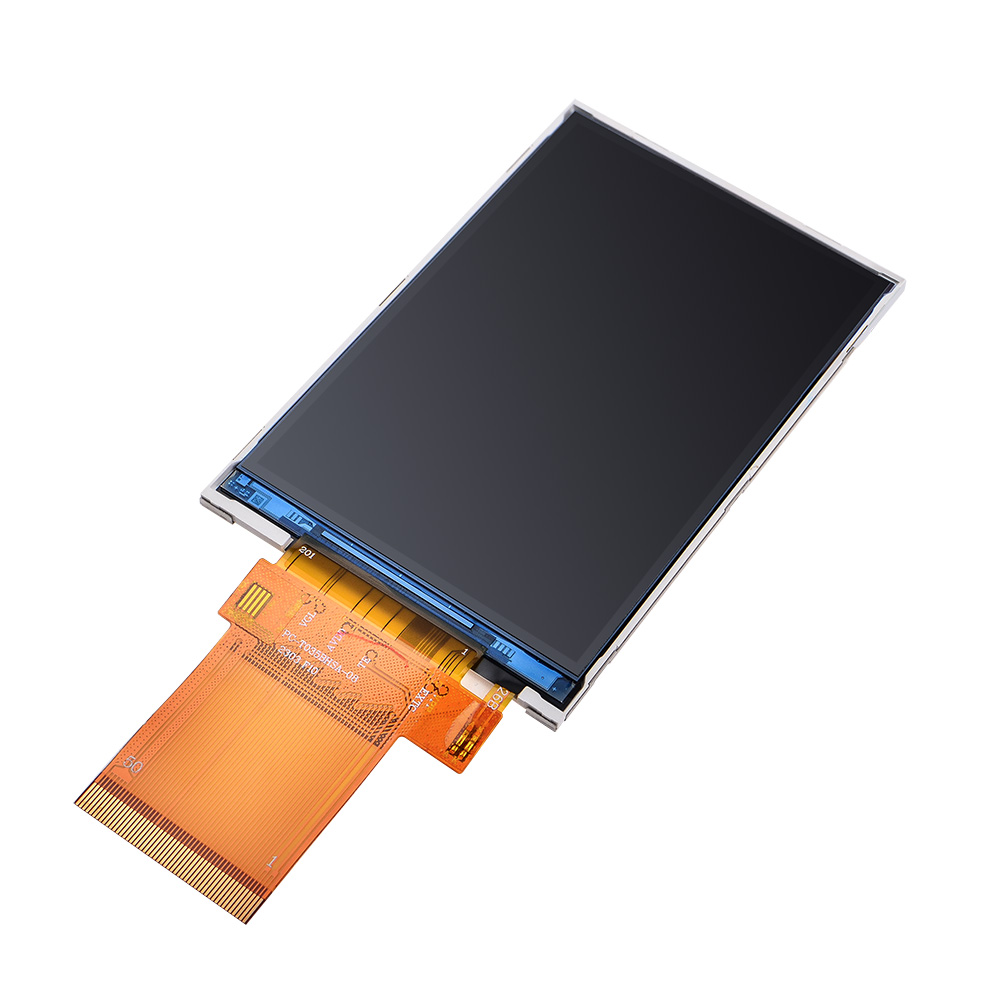

ZW-T035BHSA-08 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 3.5” display area contains 320X480 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.
| Item | Contents | Unit |
|---|---|---|
| LCD Type | TFT | - |
| Display color | 16.7M | |
| Viewing Direction | ALL | O’Clock |
| Luminance | 300 | cd/m2 |
| Operating temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Module size | Refer to outline drawing | mm |
| Active Area(W×H) | 48.96X73.44 | mm |
| Number of Dots | 320X480 | dots |
| Driver IC | ST7796U | - |
| Power Supply Voltage | 3.3 | V |
| Outline Dimensions | 54.5*216 | - |
| Backlight | 1X6-LEDs | pcs |
| Interface | RGB&SPI&MCU | - |
