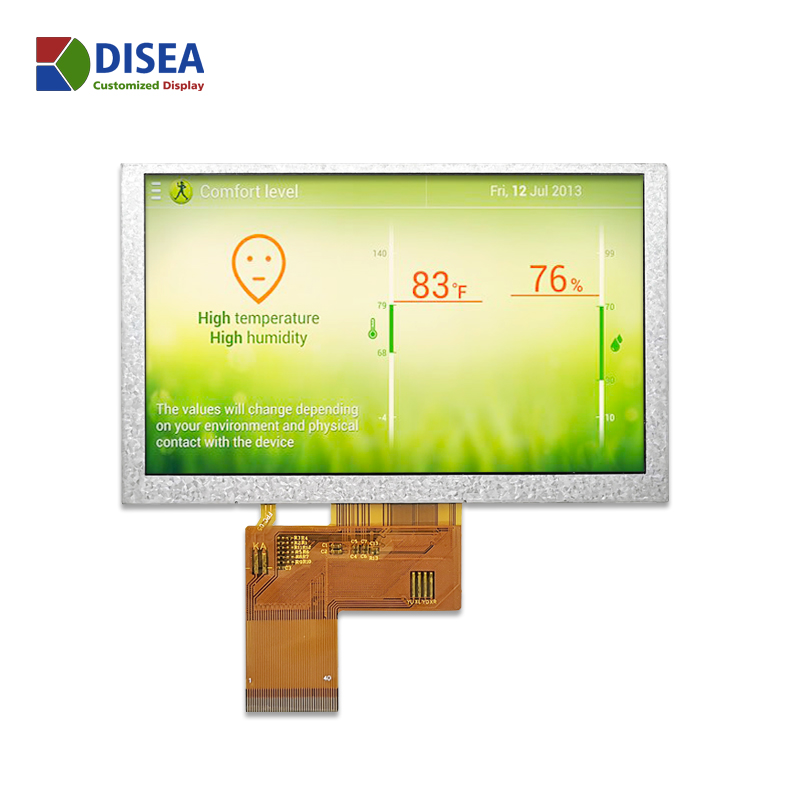

ZW-T050BWSA-02P is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC, a back light and RTP unit.The 5.0 display area contains 800x(RGB)x480 pixels and can display up to 16.7M colors.This product accords with RoHS environmental criterion.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Disea | - |
| Size | 5.0 | inch |
| Resolution | 800*480 | dots |
| Pixel pitch | 0.135(H) x 0.135V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | ALL | o'clock |
| Gray Scale Inversion Direction | ALL | o'clock |
| Luminance | 350 | cd/m2 |
| LCM (W * H * D) | 120.70*75.80*4.05 | mm |
| Active Area (W * H ) | 108.00*64.80 | mm |
| With /Without TP | With RTP | - |
| LED Numbers | 6S3P-LED | pcs |
| Operation temperature | -30~+80 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | RGB888/40PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 18.0 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | ST7262 | - |
| CTP Dricer IC | - | - |
