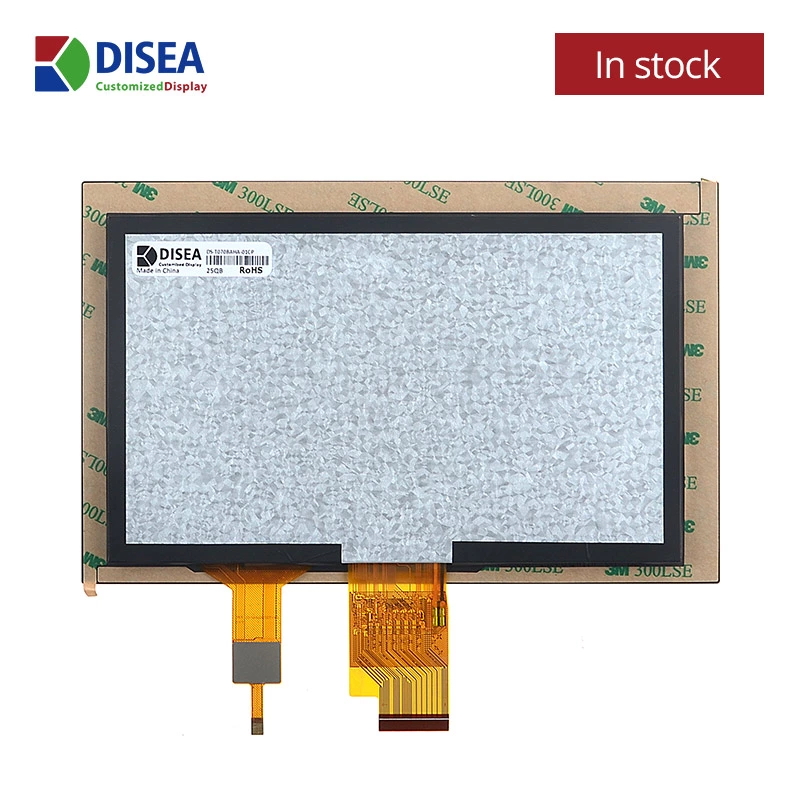

DS-T070BAHA-01CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 7.0 display area contains 1024 x 600 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.
| Item | Contents | Unit |
|---|---|---|
| LCD Type | TFT | |
| Display color | 16.7M | |
| Viewing Direction | ALL | O'Clock |
| Operating temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Module size | 7 | inch |
| Active Area(W×H) | 154.21×85.92 | mm |
| Number of Dots | 1024×600 | dots |
| Controller | HX8282A11/HX8696A | |
| Power Supply Voltage | 3.3 | V |

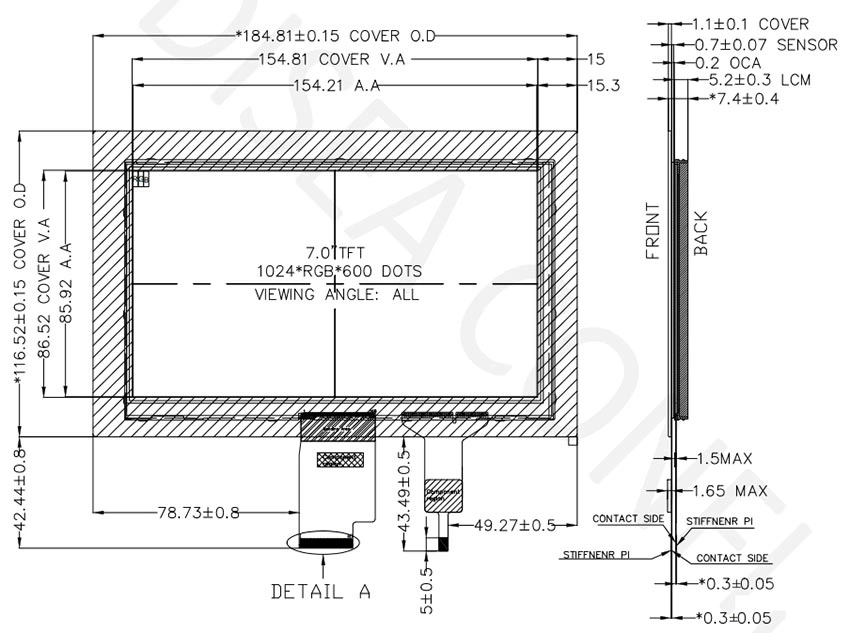

| Outline Dimensions | 184.81×116.52×7.40 | mm |
| Backlight | 3x10-LEDs(white) | pcs |
| Lcm luminance | 420 | cd/m² |
| Interface | LVDS |
| Item | Contents | Unit |
|---|---|---|
| Outline Size | 184.81×116.52×1.1 | mm |
| Cover View Area | 154.81(H)×86.52(V) | |
| CTP Resolution | 1024×600 | dots |
| Interface Mode | IIC | |
| Touch Mode | 5 Human fingers multi-touch | |
| Surface hardness | >=7H | |
| Transparency | >=85% | |
| Accuracy | Entre +/-1.5mm,Edge +/-2.5mm | mm |
| CTP Controller | ST16331 | |
| Power Supply Voltage | 3.3 | V |
