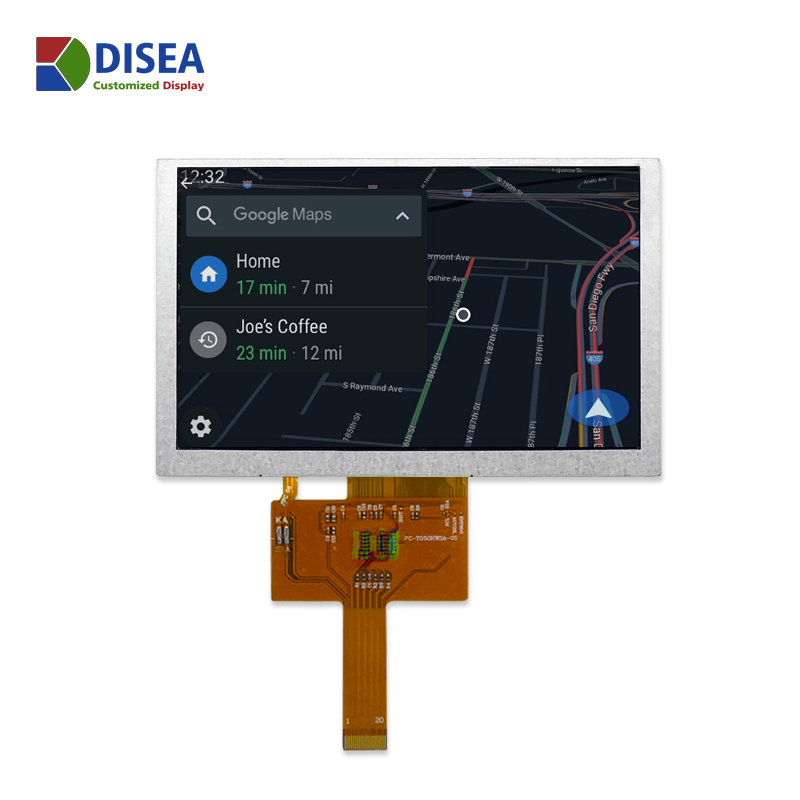

ZW-T050QGH-07 is a TFT-LCD module.It is composed of a TFT-LCD panel, driver IC,FPC, a back light unit.The 5.0 display area contains 640x(RGB)x480 pixels and can display up to 16.7M colors.This product accords with RoHS environmental criterion.
| Feature | Specification | Unit |
|---|---|---|
| Brand | Disea | - |
| Size | 5.0 | inch |
| Resolution | 640*480 | dots |
| Pixel pitch | 0.1587(H)x0.1587(V) | mm |
| Display Mode | TN/NW | - |
| Viewing Direction | 12 | o'clock |
| Gray Scale Inversion Direction | 6 | o'clock |
| Luminance | 800 | cd/m2 |
| LCM (W * H * D) | 117.65*88.43*5.70 | mm |
| Active Area (W * H ) | 101.57*76.18 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 3S6P-LED | pcs |
| Operation temperature | -20~+70 | ℃ |
| Storage temperature | -30~+80 | ℃ |
| Interface | RGB888/50PIN | - |
| LCM Power Supply | 3.3 | V |
| LED Power Supply | 9.9 | V |
| Color Depth | 16.7M | - |
| LCM Driver IC | HX8292+HX8664 | - |
| CTP Dricer IC | - | - |
