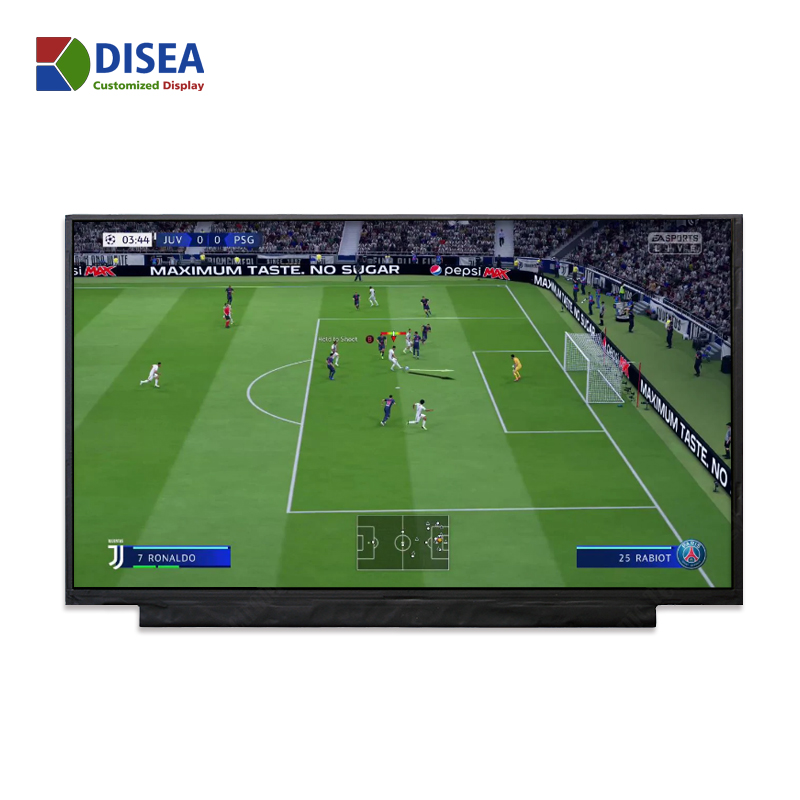

15.6 inch 1920x1080 IPS TFT LCD Module With eDP Interface

Product Description

ZW-T156QFH-01 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC, a back light unit.The 15.6 display area contains 1920x(RGB)x1080 pixels and can display up to 16.7M colors.This product accords with RoHS environmental criterion.

Customized
Accepted
Sample Stock
Small amount stock
MOQ
1000pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ
ZW-T156QFH-01
ZW-T156QFH-01 ZW-T156QFH-01 ZW-T156QFH-01 ZW-T156QFH-01

Product Details

Feature Specification Unit
Brand Disea -
Size 15.6  inch
Resolution 1920X1080 dots
Pixel pitch 0.17925(W)x 0.17925(H) mm
Display Mode IPS/NB -
Viewing Direction ALL o'clock
Gray Scale Inversion Direction ALL o'clock
Luminance 250 cd/m2
LCM (W * H * D) 350.76X216.39X2.90 mm
Active Area (W * H ) 344.16X193.59 mm
With /Without TP Without TP -
LED Numbers 9S5P-LED pcs
Operation temperature -10~+50
Storage temperature -20~+60
Interface eDP -
LCM Power Supply 3.3 V
LED  Power Supply 27.0  V
Color Depth 16.7M -
LCM Driver IC - -
CTP Dricer IC - -
