ZW-T177YTH-01

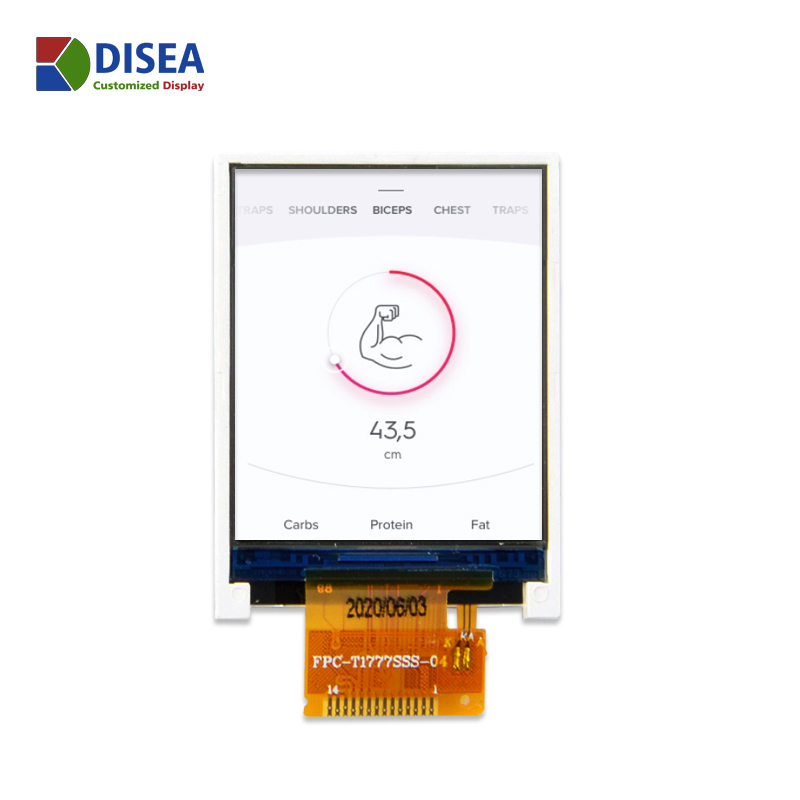

Custom 1.77 inch 160x280 TFT Display

ZW-T177YTH-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 1.77 display area contains 160X(RGB)X128 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion.

ZW-T177YTH-01

Feature Specification
Brand Disea
Size 1.77 inch
Resolution 160*128
Pixel pitch 0.1992(H)*0.2070(V)
Display Mode TN/NW
Viewing Direction 7:50
Luminance 110
LCM (W * H * D) 40.77*36.20*2.20
Active Area (W * H ) 35.28*27.71
With /Without TP Without TP
LED Numbers 3P-LED
Operation temperature -20~+70
Storage temperature -30~+80
Interface 8/16BIT MCU
LCM Power Supply 3.3
LED  Power Supply 3.0
Color Depth 262K
LCM Driver IC HX8340B

Stock And Customization

Please consult us for product stock availability. In most cases, customers need to customize their own products. Our experienced project managers can help you evaluate your project, recommend the most suitable product, or make the most logical customization suggestions. The evaluation is free and we will be happy to help you, even if you don't end up choosing us.
