2.4 inch 240*320 Transflective TFT LCD Module

Product Description

ZW-T024YQSTR-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 2.4¢¢ display area contains 240 x(RGB)x320 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion.

Customized
Accepted
Sample Stock
Small amount stock
MOQ
15000pcs
Lead Time
4-6 weeks
Payment
Bank transfer/Alibaba/Paypal
Shipping Port
HK/SZ

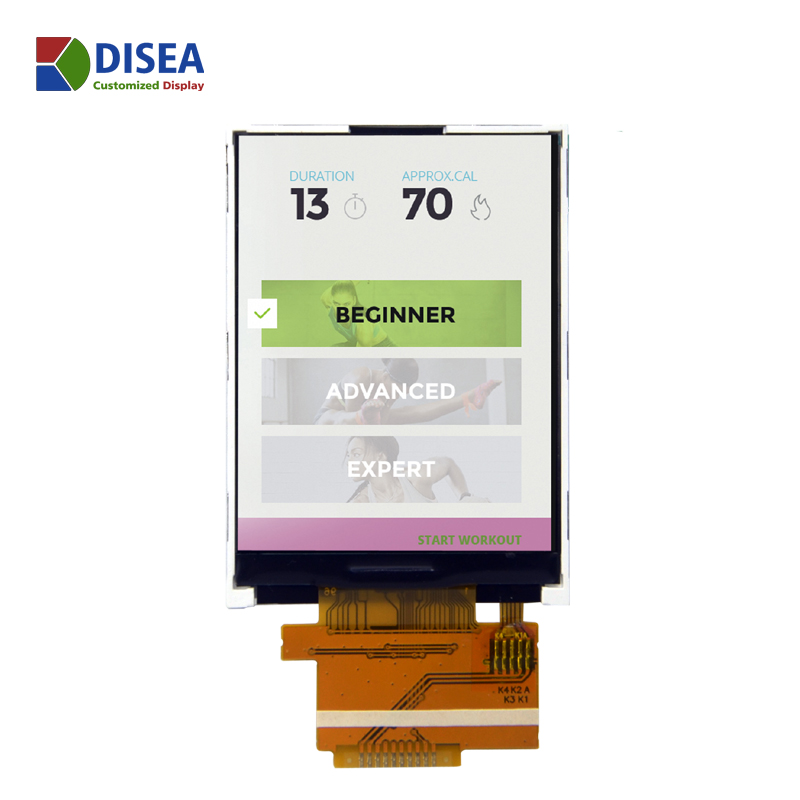

Transflective TFT LCD photo1
Transflective TFT LCD photo1 Transflective TFT LCD photo 2 Transflective TFT LCD photo 3 Transflective TFT LCD photo 4

Product Details

Brand Disea -
Size 2.4 inch
Resolution 240*320 dots
Pixel pitch 0.153(H)*0.153(V) mm
Display Mode IPS -
Viewing Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Luminance 200 cd/m2
LCM (W * H * D) 42.72X60.35X4.1 mm
Active Area (W * H ) 36.72X48.96 mm
With /Without TP -
LED Numbers 6S-LED pcs
Operation temperature -20~+70
Storage temperature -30~+80
Interface MCU -
LCM Power Supply 2.8 V
LED  Power Supply 18.0  V
Color Depth 262K -
LCM Driver IC ST7789V -
CTP Dricer IC - -
